AR Series
AR2010
Arc Welding Robot with extended 2m reach
product_overview

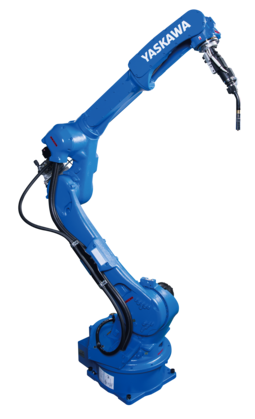

The six-axis MOTOMAN AR2010 is perfect for robotic arc welding, cutting and other path-related applications. It combines precision, performance and functionality in a way which made MOTOMAN welding robots superior over the last decades. The AR2010 allows you to achieve optimal welding results even under extremely difficult conditions.
With a high payload of up to 12 kg and a wide working range of 2,010 mm this robot is well suited for any kind of professional welding equipment, process and larger workpieces. The bended arm design and hollow arm structure allows integrated torch cabling and avoids collisions.
product_technical_details
- Number of Axis
- 6
- Payload
- 12 kg
- Max Working Range
- 2010 mm
- Repeatability
- 0.03 mm
- Weight
- 260 kg
- Power Supply
- 2 kVA
- Maximum Speed S Axis
- 210 °/s
- Maximum Speed L Axis
- 210 °/s
- Maximum Speed U Axis
- 220 °/s
- Maximum Speed R Axis
- 435 °/s
- Maximum Speed B Axis
- 435 °/s
- Maximum Speed T Axis
- 700 °/s
- Mounting Options
- Floor, Wall, Ceiling
- Further Specifications
- x No
