GP Series
GP12
6-Axis Handling Robot with 12 kg payload
product_overview

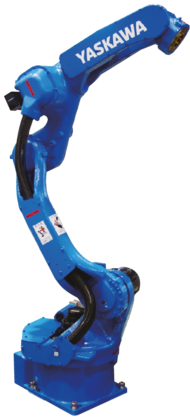

The GP12 is a highly versatile 6-axis industrial robot with 12 kg payload, 1440 mm reach and outstanding repeatability of +/- 0.02 mm.
You will achieve high transfer rates with this extremely fast and efficient GP12 robot, offering a perfectly tuned payload / speed / wrist allowable moment combination. Designed with the latest YASKAWA Sigma7-Servo Motor Generation, the GP12 offers improved acceleration/deceleration control. The small footprint and slim arm design allows for minimum installation space and minimizes interference with peripheral devices. Installation is quick and efficient - media cables are guided through the hollow arm and wrist structure.
This robot is also available with high IP65/67 dust & liquid protection to operate in harsh environments.

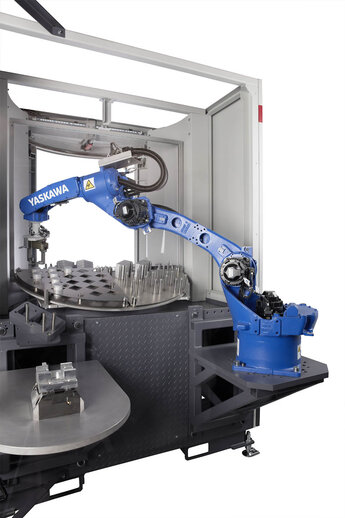

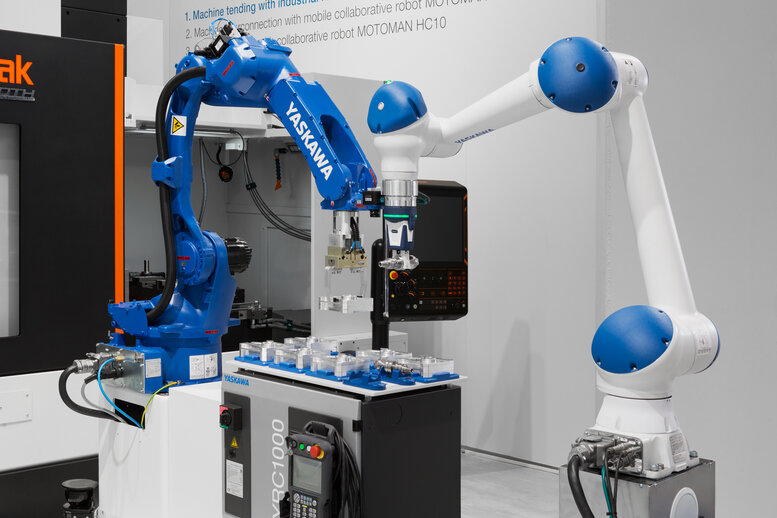

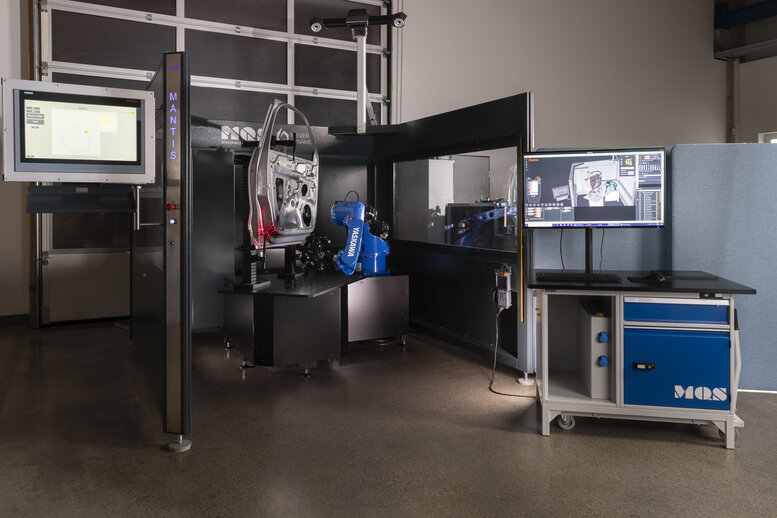

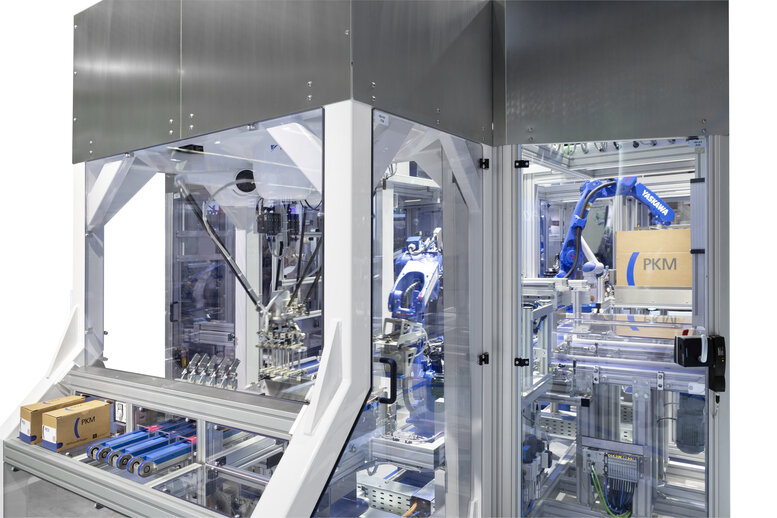

The GP12 is perfect for a wide range of applications, including machine tending, material handling, assembly, additive manufacturing, dispensing, grinding/polishing and quality inspection. Also in the field of e-Commerce, Consumer Good Logistics and Postal Automation, the GP12 is an attractive candidate for outstanding throughput, in combination with Intelligent Machine Vision.
product_technical_details
- Number of Axis
- 6
- Payload
- 12 kg
- Max Working Range
- 1440 mm
- Repeatability
- 0.02 mm
- Weight
- 150 kg
- Power Supply
- 1.5 kVA
- Maximum Speed S Axis
- 260 °/s
- Maximum Speed L Axis
- 230 °/s
- Maximum Speed U Axis
- 260 °/s
- Maximum Speed R Axis
- 470 °/s
- Maximum Speed B Axis
- 470 °/s
- Maximum Speed T Axis
- 700 °/s
- Mounting Options
- Ceiling, Wall, Floor
- Further Specifications
- x No
product_downloads
| downloadcenter_name | |||
|
Flyer Robot GP12
Handling & General Applications with the GP-series Data sheet | Englisch |
Data sheet | Englisch | |
|
Flyer Robot GP12
Handling & Allgemeine Applikationen mit der GP-Serie Data sheet | Deutsch |
Data sheet | Deutsch | |
| GP12 2D CAD/CAE | | CAD/CAE | ||
| GP12 3D CAD/CAE | | CAD/CAE | ||
|
Flyer Robot GP12
Manipulation & Applications générales avec la série GP Data sheet | Französisch |
Data sheet | Französisch | |
| Brochure GP Series Brochures & Catalogues | Englisch | Brochures & Catalogues | Englisch | |
| Broschüre GP-Serie Brochures & Catalogues | Deutsch | Brochures & Catalogues | Deutsch |
