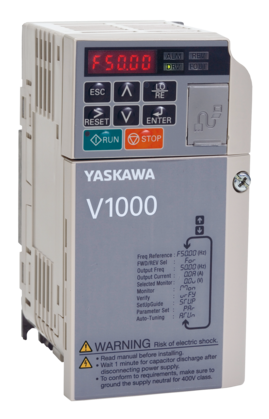

CIMR-VCBA0006BAA

• Input Power Supply
• 200 V

• Rated Output Current (HD)
• 5 A

• Rated Output Current (ND)
• 6 A

• 50% ED Rated Output Current
• x No

• Overload Tolerance (ND)
• 120% 60 sec

• Overload Tolerance (HD)
• 150% 60 sec

• Max. Applicable Motor Output (HD)
• 0.75 kW

• Max. Applicable Motor Output (ND)
• 1.1 kW

• Input Power Phases
• 1-phase

• EMC Filter
• x No

• Motor Type
• Permanent magnet motor, Induction motor

• Encoder
• x No

• Standards Compliance
• cUL, CE, RoHS, UL, UKCA

• Regenerative Capacity
• x No

• Ambient Temperature (Min)
• -10 °C

• Ambient Temperature (Max)
• 50 °C

• Ambient Temperature (Max) with Derating
• x No

• Max. Humidity (non-condensing)
• 95 %

• Max. Altitude (without Derating)
• 1000 m

• Max. Altitude (with Derating)
• 3000 m

• Height
• 128 mm

• Width
• 108 mm

• Depth
• 137.5 mm

• Weight
• 1.7 kg

• Cooling Method
• Coldplate, Air cooling

• Enclosure
• IP20/UL Open Type

• Environmental Spec
• Standard

• Analog Input
• 2

• Analog Output
• 1

• Digital Input
• 6

• Digital Output
• 3

• Safety Level
• SIL2

• Performance Level
• PL d

• Torque Control
• Not available

• Braking Transistor
• External

• Motor Thermal Protection
• Standard

• Max Output Frequency
• 400 Hz
